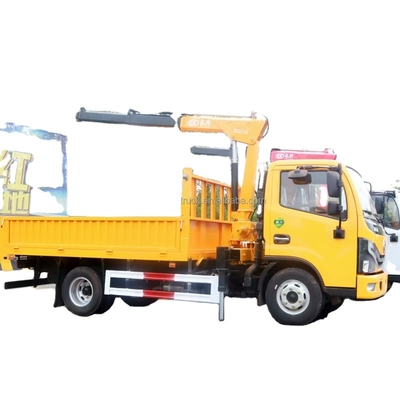

홈 /제품 소개/망원경 트럭 크레인/TRUCK CRANE 4x2 5 Ton Truck Mounted Crane Arm Hydraulic Telescopic Straight Construction Truck Crane

TRUCK CRANE 4x2 5 Ton Truck Mounted Crane Arm Hydraulic Telescopic Straight Construction Truck Crane

1 Set
MOQ
$21,899.00(1 - 4 Sets) $20,472.00(>=5 Sets)
가격
TRUCK CRANE 4x2 5 Ton Truck Mounted Crane Arm Hydraulic Telescopic Straight Construction Truck Crane
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Feature: TRUCK CRANE
Showroom Location: Philippines, Peru, Indonesia, Pakistan, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Condition: New
Application: Construction /hoisting
Rated Loading Capacity: 5 ton
Rated Lifting Moment: 12.5t.m
Max. Lifting Height: 9.3m 11.9m
Span: 4.3m
Warranty: 1 Year
Hydraulic Cylinder Brand: Liyuan
Hydraulic Pump Brand: Shen-bai
Hydraulic Valve Brand: Huada
Engine Brand: Chao chai / Yuchai
UNIQUE SELLING POINT: High operating efficiency with good price
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pump, Gearbox, Engine
Weight (KG): 8200 kg
Item No.:: Shenbai-5TON-changxing-Boom crane
Crane type: Telescopic Straight Boom Crane
Maximum lifting weight: 5000kg
Max lifting heaight: 11.1m / 13.6m
Chassis: Dongfeng Truck Chassis
Driving type: LHD, RHD, 4x2
Rotation angle: 360 Degree
Emission standard: Euro3/4/5/6
After Warranty Service: Video technical support
기본 정보
결제 및 배송 조건
Packaging Details: Bulk, Ro-Ro, specified by the customers
Supply Ability: 2000 Set/Sets per Year
제품 설명
Product Overview
Factory direct sales truck mounted crane
Inquiry us for better price
Mainly used for hoisting / lifting works and engineering construction. Such as: factories, roads, bridges, buildings, rescue and so on.
PRODUCT SPECIFICATIONS
5 ton straight boom Crane information
Crane Specification
6.3 Ton
1
Crane Brand
Chang xing
Chang xing
2
Arms sections
4
4
3
Max lifting capacity(kg)
5000kg (2.5m)
5000kg (2.5m)
4
Max. Lifting moment
12.5 ton.m
15.75 ton. m
5
Working radius(m)
11m
11m
6
Max lifting height(m)
13m
13m
7
Crane weight(kg)
2300kg
2302kg
8
Operation pressure
24mpa
24mpa
9
span(m)
5.2m
5.2m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
4 / 5 /6.3 ton
Max Speed
88km/h
2
Chassis Brand
Dongfeng
Axles
2
3
Rated loading weight
6505/7505Kg
Cab
2/3 person allowed
4
Curb weight
8200/7200 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
700/725 x 240/250 x328/368cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
430x230x50 cm
Horse Power
180-210 hp
7
Wheelbase
380cm
Emissions
ml
8
Drive type
4 x 2
Chassis Brand
Dongfeng / Shac Man / Faw / Howo /camc optional
PRODUCT CONFIGURATION

Hydraulic Engine

Hydraulic cylinder

Radiator

.

Multiple Valve

slewing bearing

Winch

Lifting arms
Remote controller
Span hydraulic cylinder
Products at a glance
Changxing crane mounted for trucks
Shenbai's independent R&D brand:
CX crane, Well know on domestic markets.
With different loading weight:
straight boom crane: 2ton, 3.5 ton, 4 ton, 5 ton, 8 ton, 10 ton, 12ton, 14ton, 16ton, 20ton.
knuckle / folding arms crane: 4 ton, 6.3 ton, 8ton, 12ton, 16ton, 20ton, 25tons, 30ton, 35ton, 40ton, 45ton, 65ton, 110 ton, at basic lifting height of 2m, and 83ton, 100ton, 130ton at lifght height of 4m.
Company Profile / About Us


Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle.
Now we have a wider products series:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
We're looking for longterm partnership all over the world!
Packaging and Shipping / Shipping port: Shanghai
FAQ
1.Are you factory or trading Company?
Yes, we are factory. You're welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. Generally 20-30 days.
6. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
