홈 /제품 소개/붐 트럭 크레인/TRUCK CRANE Truck Crane 6x4 20m Hydraulic Mobile Boom Crane 12 Ton Telescopic Crane Truck

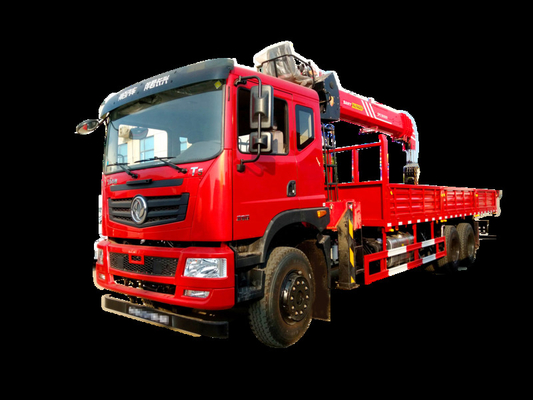

TRUCK CRANE Truck Crane 6x4 20m Hydraulic Mobile Boom Crane 12 Ton Telescopic Crane Truck

1 Set
MOQ
$22,589.00(1 - 2 Sets) $21,189.00(3 - 9 Sets) $19,855.00(>=10 Sets)
가격
TRUCK CRANE Truck Crane 6x4 20m Hydraulic Mobile Boom Crane 12 Ton Telescopic Crane Truck
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Feature: TRUCK CRANE
Showroom Location: Philippines, Peru, Indonesia, Pakistan, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Condition: New
Application: Construction /hoisting
Rated Loading Capacity: 10 TON
Rated Lifting Moment: 250kg.m
Max. Lifting Height: 15.6m
Span: 4.8
Warranty: 1 Year
Hydraulic Cylinder Brand: Huade
Hydraulic Pump Brand: Huade
Hydraulic Valve Brand: Huada
Engine Brand: Dachai/Yuchai Optional
UNIQUE SELLING POINT: High operating efficiency with good price
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New product 2020
Warranty of core components: 1 Year
Core Components: Pump, Gearbox, Engine
Weight (KG): 11900 kg
Item No.: Shenbai-10ton-Changxing-Boom crane
Crane weight:: 4670kg
Maximum lifting weight: 12000kg
Max lifting height: 16.9m
Max. working radius: 15.5m
Crane type: Telescopic Straight Boom Crane
Chassis Brand: Dongfeng
Driving type: LHD, RHD, 6*4
Rotation angle: 360 Degree
After Warranty Service: Video technical support
기본 정보
결제 및 배송 조건
Packaging Details: Bulk, Ro-Ro, specified by the customers
Supply Ability: 1000 Set/Sets per Year
제품 설명
Product Overview
The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane...It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.. Our truck with crane also install Remote control, Brick clamping apparatus, different kinds of grab bucket, work basket, etc.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.

Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton, 20Ton, 25Ton, 27Ton, 30Ton, 32Ton, 35Ton.

The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.

For truck, DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
PRODUCT SPECIFICATIONS
12 ton straight boom Crane information (14 ton available)
Crane Specification
1
Crane Brand
Chang xing
Chang xing
2
Arms sections
4
5
3
Max lifting capacity(kg)
1200kg (2.5m)
1200kg (2.5m)
4
Max. Lifting moment
30 ton.m
30 ton. m
5
Working radius(m)
15.5m
17.7m
6
Max lifting height(m)
16.9m
20.1m
7
Crane weight(kg)
4670kg
5470kg
8
Operation pressure
31mpa
31mpa
9
span(m)
4.8m
4.8m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
10 / 12 ton
Max Speed
89km/h
2
DChassis Brand
DONG FENG
Axles
3
3
Rated loading weight
9105KG
Cab
single cab, 2 crew seat
4
Curb weight
15700/16200 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
1200 x 255/259x 388/378 cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
840/720x 270/240 x55 cm
Horse Power
240/245hp
7
Wheelbase
435+130 cm, 540+130 cm
Emissions
6800/6700ml
8
Drive type
6x4
Chassis Brand optional
Dongfeng / Shac Man / Faw / Howo /camc /SINOTRUCK optional
9
Tyre :10+1, 315/80R22.5,9.00R20,10.00R20, 8-speed gearbox, ABS, AIR conditioner, wheel base can be longer. Box thickness according to requirement. Box height could be nominated
10+1,
Products at a glance
Dongfeng 5 tons truck mounted crane
Dongfeng 8 tons truck mounted crane
CAMC heavy truck mounted crane
Company Profile / About Us


Shenbai Automobile Group located in Suizhou city Hubei Province of China, Suizhou city is the city of special vehicle in China.
We mainly produce truck mounted crane, flat bed truck, refrigerated vans, heavy truck crane and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification, and has our own R&D centers to develop products.
Our products are well-known on domestic market, and already exporting to many different countries and area as well.

Work shop materials

Work shop Mobile boom crane

Work shop folding arms crane

Packaging and Shipping / Shipping port: Shanghai
FAQ
1.Are you factory or trading Company?
Yes, we are factory. You're welcomed to visit our factory.

2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.

3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.

4. Could you provide certification that we need?
We can provide various certifications associate with truck.

5. How long could we receive our goods?
It depends on the product that you have ordered. Generally 20-30 days.

6. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
