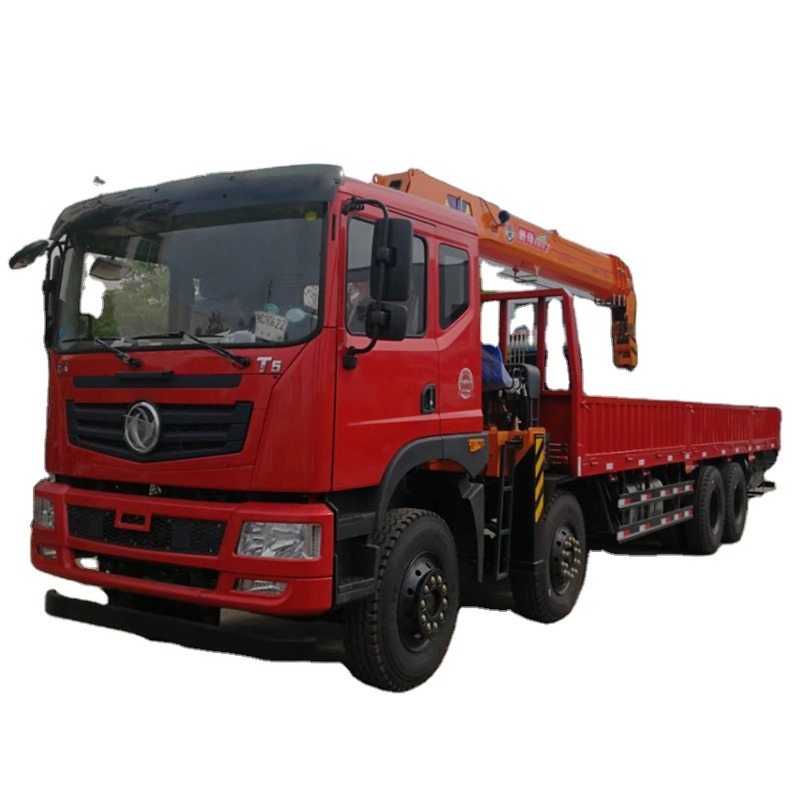

TRUCK CRANE Telescopic Towable Trailer Truck Mounted Crane 10ton Truck Mounted Hydraulic Cranes

1.0 Sets
MOQ
TRUCK CRANE Telescopic Towable Trailer Truck Mounted Crane 10ton Truck Mounted Hydraulic Cranes
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Feature: TRUCK CRANE
Showroom Location: Saudi Arabia, Indonesia, Russia, Uzbekistan
Condition: New
Application: outdoor
Rated Loading Capacity: 10 Ton
Rated Lifting Moment: 250KN.m
Max. Lifting Height: 15M
Span: 14
Warranty: 1 Year
Hydraulic Cylinder Brand: Top brand
Hydraulic Pump Brand: Top brand
Hydraulic Valve Brand: Top brand
Engine Brand: Cummins
UNIQUE SELLING POINT: High operating efficiency
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 3 years
Core Components: PLC, Gearbox, Pressure vessel, Pump
Weight (KG): 16000 kg
Product name: 10 ton truck mounted crane
Crane type: Truck Crane Mobile Crane Hydraulic Crane
Hydraulic parts: Telescopic Boom Mobile Crane Made
Crane feature: High Efficiency
Max lifting capacity: 10 T
Number of Section: 4
Boom length: 5.3-14.3M
Hydraulic oil tank volume: 120L
Hydraulic system pressure: 23Mpa
Vehicle weight: 12380kg
기본 정보
결제 및 배송 조건
Packaging Details: 1 Set/Export Wooden Case
Supply Ability: 1000 Set/Sets per Month
제품 설명
PRODUCT SPECIFICATIONS
telescopic towable trailer truck mounted crane 10ton truck mounted hydraulic cranes
Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition. 1, advanced R & D and analysis means to ensure design reliability. 2, four-link mechanism, lifting capacity stronger. 3, flange telescopic arm connection structure. 4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions. 5, hexagonal boom technology, good for neutral, cross-section bending ability. 6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force. 7. Straight arm and folding arm are optional

Application :

Landscaping, traffic rescue, building materials transportation, power construction, road installation, advertising installation, etc.

It's better to give below detail parameters when you send enquiry to us:

1. Lifting capacity:___?tons or what type cntainers you need to lift 2.Span:___meters ( Distance between two wheel centers) 3.Lifting height:__?meters 4.Work duty: __?hours you need the crane to work? what's the full load percentage? 5.Power supply: __?V __?HZ

Our cooperation process

To train operating,maintenance and construction people for our customers.
1： Keep clients updated when our company getsadvanced payment;
2：Confirm production details with clients;
3:Take photos and send all pictures to customers during production;
4:Inspection and testing the product before delivery;
5： Always be ready to answer technical questions concerned from our customers.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
7： To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
8:Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
Transport vehicle parameters
Cab
    Dongfeng new F5     /      Applicable Industries:
Chassis brand
Dongfeng
Engine model
YC6JA180-50
Gwabox
Fast small 8 gear
Number of axes
2
Frame
300mm three-layer straight through
Wheelbase
5100MM
Tire specifications
10.00R20
Number of tires
6
Cargo box size
5700×2300×550
Vehicle size
9000×2500×3850
Boom parameters
HKY3531-3-2
Lifting weight
10T
Dimension(L*W*H)
5680×2450×2453
Number of section
4
Boom length
5.3-14.3M
Max Lifting Moment:
250KN.M
Deadweight
3460KG
Engine
Cummins
Rotation Angle
360°
Max. Lifting Height
15M
Span
14M
Front bracket span
5.6M
Rear bracket
3.7M
Hydraulic oil tank volume
120L
Hydraulic system pressure
23Mpa
Successful Project
Company Profile
Liuyang Economy and Technology Development Area High Tech Import & Export Co., Ltd engaged in developing, manufacturing and exporting construction machines in the areas of building, mining, auto parts energy andlogistic engineering. services for more than 1700 enterprises in the Economic and Technological Development Zone.professional exporter of construction machinery and a one-stop solution provider. Our team has over 20 years of experience in this field.
Factory Workshop
Delivery and package
After-sales service
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition. (2)Spare parts: LiuYang is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. (3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation. (4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site. (5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Q1: Why should I choose you?
1. after sales service support in different languages; 2. Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center; 3. Technical training can be carried out for customers in the factory or on the job site 4. Plenty of original spare parts with proven quality are all available from our central stocks in HUNAN Province and alldistributors'depots; 5. All kinds of technical documents in different languages. Q2:Where is your factory located? A:Our factory is located in HUNAN Q3: How many do you produce every month? A: We can produce 100 pcs every month. Q4: Can you use our brand? A: Yes, OEM is available. Q5: What is delivery time? A: It depends on the order quantity .Normally our lead-time is 7-30 days
