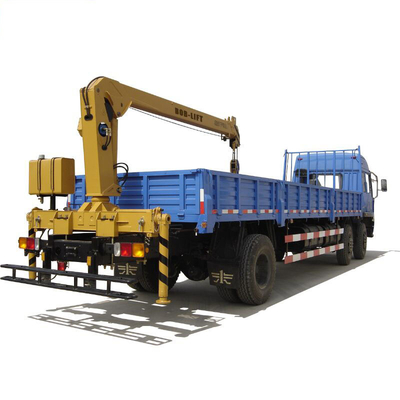

POPULAR TRUCK BOBLIFT CRANE Tons 2 3 Ton 4 Ton Straight Arm Crane Truck Mounted Crane Telescopic Boom Crane For Sale

1 Set
MOQ
$9,000.00(>=1 Sets)
가격
POPULAR TRUCK BOBLIFT CRANE Tons 2 3 Ton 4 Ton Straight Arm Crane Truck Mounted Crane Telescopic Boom Crane For Sale
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Rated Loading Capacity: 4 tons
Max. Lifting Height: 10.2 m
Warranty: 1 Year
Hydraulic Cylinder Brand: Xuzhou Yanhuang
Hydraulic Pump Brand: Shanghai Shenfu
Hydraulic Valve Brand: Shanghai Qiangdian
Engine Brand: DF
UNIQUE SELLING POINT: High load Moment
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pump
Weight (KG): 4000 kg
Product name: Truck Mounted Crane
Brand: bob-lift
Model: SQ4SA2
Power: 12V/24V/220V
Max lifting capacity: 4 ton
Color: Customer Requirements
Origin: 100% China
High quality: Cost Effecitve
Usage: Lifting Construction Goods
Location: Xuzhou City
기본 정보
Model Number: SQ4SA2
결제 및 배송 조건
Packaging Details: wooden packing Shipping fees can be negotiable
Supply Ability: 100 Roll/Rolls per Month
제품 설명
PRODUCT DESCRIPTION
Item
Unit
SQ4SA2
Max Lifting Capacity
Kg
4000
Max Lifting Moment
Ton.m
8.4
Recommend Power
Kw
16
Hydraulic System Flow
L/min
25
Hydraulic System Pressure
Mpa
20
Oil Tank Capacity
L
60
Installation Space
mm
750
Self Weight
Kg
About 1250
Rotation Angle
。
360
PRODUCT PROCESS
PRODUCT PACKING
PRODUCT APPLICATION
SUCCESSFUL PROJECT

12T Knuckle Crane in Germany

15 Sets Knuckle Cranes to Sudan

3.2T Telescopic Cranes to Thailand

COMPANY PROFILE
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
