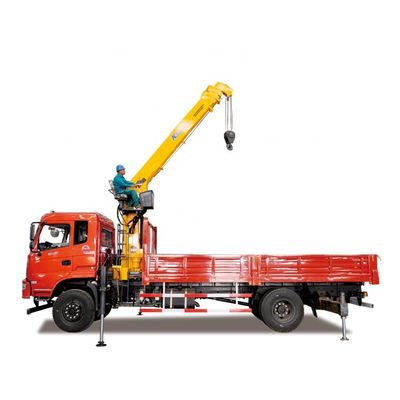

Dongfeng 4 Tons Truck Mounted Crane
|
Project |
Unit |
Value |
|
|
Crane Dimension |
Crane Model |
- |
SQ 4T |
|
Max. Lifting Capacity |
kg |
4000 |
|
|
Max. Lifting Height |
m |
11.5 |
|
|
Working Radius/ Span |
m |
2.1-7.93 |
|
|
Rotation Angle |
º |
360 |
|
|
Boom Raising Angle Scope |
º |
0-75 |
|
|
Boom Sections |
Piece |
3 |
|
|
Outrigger Quantity |
Piece |
2 |
|
|
Outrigger Span (Fully Extended) |
mm |
1989-3329 |
|
|
Crane Weight |
kg |
1271 |
|
|
Hydraulic Tank Capacity |
L |
30 |
|
|
Max. Flow Rate of Hydraulic Oil System |
L/min |
25 |
|
|
Hydraulic System Rated Pressure |
Mpa |
20 |
|
|
Installation Space |
mm |
850 |
|
|
Working Parameter |
The Basic Boom Length |
m |
3.3-11.5 |
|
Max. Lifting Torque |
T.m |
6.8 |
|
|
Max. Slewing Speed |
r/ min |
2 |
|
Famous Brand Hydraulic Parts for our Truck Crane
Prodution Progress
